LN4919
MicroPower , Ultra-Sensitive CMOS Hall IC
LN4919 is with proprietary Hall effect plate and single
CMOS output driver, mainly designed for battery–powered,
hand-held equipment (such as Cellular and Cordless
Phone, PDA).
When north-pole of sufficient strength on chip or south-pole
of sufficient strength under chip, the LN4919 will turn on
the OUT output. When south-pole of sufficient strength on
chip or north-pole of sufficient strength under chip, the
LN4919 will turn on the OUT output.
LN4919 series have above two kinds Hall effect output,
please select appropriate model for different application.
While the magnetic flux density (B) is larger than operate
point BOP, the OUT will be turned on (low), the output is
held until B is lower than release point BRP, then turned off
(high).
■ General Description
LN4919 is with proprietary Hall effect plate and single CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When north-pole of sufficient strength on chip or south-pole of sufficient strength under chip, the LN4919 will turn on the OUT output. When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4919 will turn on the OUT output. LN4919 series have above two kinds Hall effect output, please select appropriate model for different application. While the magnetic flux density (B) is larger than operate point BOP, the OUT will be turned on (low), the output is held until B is lower than release point BRP, then turned off (high).
■ Features
? 1.8V to 4.5V battery operation
? Operation with North or South Pole
? Chopper stabilized
? Superior temperature stability
? Extremely Low Switch-Point Drift
? Insensitive to Physical Stress
? Good RF noise immunity
? ESD HBM bigger than 4kV
? Lead Free Finish/RoHS Compliant

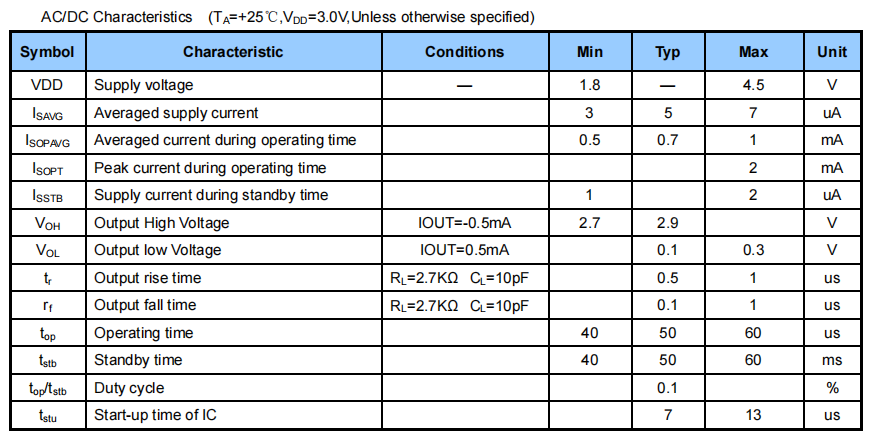

■ Application
? Mobile phones and Portable electronic devices
? Notebook
